Spatial data and visualization

# Spatial data and visualization
## Intro to Data Science
### Shawn Santo
### 01-28-20

---

## Announcements

- Homework 1 due Jan 30 at 11:59pm via Gradescope. Remember to associate
  pages with answers and the "Overall" section with the first page.

- Points will be taken off if pages aren't associated on Gradescope.
  See myself or the TAs if you need any help.

???

## Installing package `sf` locally

From https://r-spatial.github.io/sf/index.html

**Windows**

Installing `sf` from source works under windows when Rtools is installed.
This downloads the system requirements from rwinlib.

**MacOS**

```bash
brew install pkg-config
brew install gdal
```
Once gdal is installed, you will be able to install sf package from source in R.

**Linux**

For Unix-alikes, GDAL (>= 2.0.1), GEOS (>= 3.4.0) and Proj.4 (>= 4.8.0) are
required.

---

## Get today's application exercise

- Navigate to https://classroom.github.com/a/wuuyTAiA

- Clone your application exercise repo, appex04-[github_name]

- Change your project's name in RStudio Cloud to appex04-[your_name]

- Configure git in RStudio Cloud's console pane

    ```r
    library(usethis)
    use_git_config(user.name = "name", user.email = "email")
    ```

---

# Introduction

---

## Spatial data is different

Our typical tidy data frame:

```
#> # A tibble: 336,776 x 19
#> year month day dep_time sched_dep_time dep_delay arr_time
#> <int> <int> <int> <int> <int> <dbl> <int>
#> 1 2013 1 1 517 515 2 830
#> 2 2013 1 1 533 529 4 850
#> 3 2013 1 1 542 540 2 923
#> 4 2013 1 1 544 545 -1 1004
#> 5 2013 1 1 554 600 -6 812
#> 6 2013 1 1 554 558 -4 740
#> 7 2013 1 1 555 600 -5 913
#> 8 2013 1 1 557 600 -3 709
#> 9 2013 1 1 557 600 -3 838
#> 10 2013 1 1 558 600 -2 753
#> # … with 336,766 more rows, and 12 more variables: sched_arr_time <int>,
#> # arr_delay <dbl>, carrier <chr>, flight <int>, tailnum <chr>,
#> # origin <chr>, dest <chr>, air_time <dbl>, distance <dbl>, hour <dbl>,
#> # minute <dbl>, time_hour <dttm>
```

---

## A simple feature object

```
#> Simple feature collection with 100 features and 2 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
#> epsg (SRID):    4267
#> proj4string:    +proj=longlat +datum=NAD27 +no_defs
#> First 10 features:
#>     AREA        NAME                       geometry
#> 1  0.114        Ashe MULTIPOLYGON (((-81.47276 3...
#> 2  0.061   Alleghany MULTIPOLYGON (((-81.23989 3...
#> 3  0.143       Surry MULTIPOLYGON (((-80.45634 3...
#> 4  0.070   Currituck MULTIPOLYGON (((-76.00897 3...
#> 5  0.153 Northampton MULTIPOLYGON (((-77.21767 3...
#> 6  0.097    Hertford MULTIPOLYGON (((-76.74506 3...
#> 7  0.062      Camden MULTIPOLYGON (((-76.00897 3...
#> 8  0.091       Gates MULTIPOLYGON (((-76.56251 3...
#> 9  0.118      Warren MULTIPOLYGON (((-78.30876 3...
#> 10 0.124      Stokes MULTIPOLYGON (((-80.02567 3...
```

**What differences do you observe?**

---

## Analysis of spatial data in R

- Package `raster` contains classes and tools for handling spatial raster data.

- Package `sf` combines the functionality of `sp`, `rgdal`, and `rgeos`
  into a single package based on tidy simple features.

]

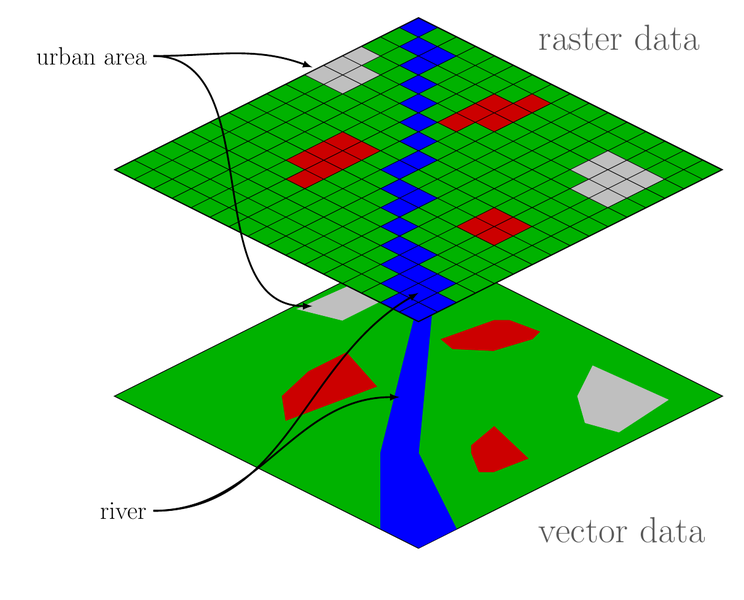

![](images/vector_raster_comparison.png)

]

Whether or not you use vector or raster data depends on the type of problem
and the data source. Our focus will be on vector data and package `sf`.

*Source:* https://commons.wikimedia.org/wiki/File:Raster_vector_tikz.png

---

## Features and simple features

- A **feature** is a thing or object in the real world: a house, a city, a park,
 a forest, etc.

- A **simple feature**, as defined by OpenGIS Abstract, is to have
 both spatial and non-spatial attributes. Spatial attributes are geometry
 valued, and simple features are based on 2D geometry with linear
 interpolation between vertices.

```r
Simple feature collection with 100 features and 1 field
geometry type: MULTIPOLYGON
dimension: XY
bbox: xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
epsg (SRID): 4326
proj4string: +proj=longlat +datum=WGS84 +no_defs
# A tibble: 100 x 2
 NAME geometry
 <chr> <MULTIPOLYGON [°]>
*1 Ashe (((-81.47276 36.23436, -81.54084 36.27251, -...
2 Alleghany (((-81.23989 36.36536, -81.24069 36.37942, -...
```

---

## Geometry examples

---

# Visualizing spatial data

---

## Getting `sf` objects

To read simple features from a file or database use function `st_read()`.

```r
library(sf)
nc <- st_read(system.file("shape/nc.shp", package = "sf"), quiet = TRUE)
nc
```

```
#> Simple feature collection with 100 features and 14 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
#> epsg (SRID):    4267
#> proj4string:    +proj=longlat +datum=NAD27 +no_defs
#> First 10 features:
#>     AREA PERIMETER CNTY_ CNTY_ID        NAME  FIPS FIPSNO CRESS_ID BIR74
#> 1  0.114     1.442  1825    1825        Ashe 37009  37009        5  1091
#> 2  0.061     1.231  1827    1827   Alleghany 37005  37005        3   487
#> 3  0.143     1.630  1828    1828       Surry 37171  37171       86  3188
#> 4  0.070     2.968  1831    1831   Currituck 37053  37053       27   508
#> 5  0.153     2.206  1832    1832 Northampton 37131  37131       66  1421
#> 6  0.097     1.670  1833    1833    Hertford 37091  37091       46  1452
#> 7  0.062     1.547  1834    1834      Camden 37029  37029       15   286
#> 8  0.091     1.284  1835    1835       Gates 37073  37073       37   420
#> 9  0.118     1.421  1836    1836      Warren 37185  37185       93   968
#> 10 0.124     1.428  1837    1837      Stokes 37169  37169       85  1612
#>    SID74 NWBIR74 BIR79 SID79 NWBIR79                       geometry
#> 1      1      10  1364     0      19 MULTIPOLYGON (((-81.47276 3...
#> 2      0      10   542     3      12 MULTIPOLYGON (((-81.23989 3...
#> 3      5     208  3616     6     260 MULTIPOLYGON (((-80.45634 3...
#> 4      1     123   830     2     145 MULTIPOLYGON (((-76.00897 3...
#> 5      9    1066  1606     3    1197 MULTIPOLYGON (((-77.21767 3...
#> 6      7     954  1838     5    1237 MULTIPOLYGON (((-76.74506 3...
#> 7      0     115   350     2     139 MULTIPOLYGON (((-76.00897 3...
#> 8      0     254   594     2     371 MULTIPOLYGON (((-76.56251 3...
#> 9      4     748  1190     2     844 MULTIPOLYGON (((-78.30876 3...
#> 10     1     160  2038     5     176 MULTIPOLYGON (((-80.02567 3...
```
]

???

## Data details

This data set was presented first in Symons, Grimson, and Yuan (1983),
analysed with reference to the spatial nature of the data in Cressie and Read
(1985), expanded in Cressie and Chan (1989), and used in detail in Cressie
(1991). It is for the 100 counties of North Carolina, and includes counts of
numbers of live births (also non-white live births) and numbers of sudden infant
deaths, for the July 1, 1974 to June 30, 1978 and July 1, 1979 to June 30, 1984
periods. In Cressie and Read (1985), a listing of county neighbours based on
shared boundaries (contiguity) is given, and in Cressie and Chan (1989), and in
Cressie (1991, 386–89), a different listing based on the criterion of distance
between county seats, with a cutoff at 30 miles. The county seat location
coordinates are given in miles in a local (unknown) coordinate reference system.

---

## A closer look

```
#> Simple feature collection with 100 features and 5 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
#> epsg (SRID):    4267
#> proj4string:    +proj=longlat +datum=NAD27 +no_defs
#> First 10 features:
#>           NAME BIR74 BIR79 SID74 SID79                       geometry
#> 1         Ashe  1091  1364     1     0 MULTIPOLYGON (((-81.47276 3...
#> 2    Alleghany   487   542     0     3 MULTIPOLYGON (((-81.23989 3...
#> 3        Surry  3188  3616     5     6 MULTIPOLYGON (((-80.45634 3...
#> 4    Currituck   508   830     1     2 MULTIPOLYGON (((-76.00897 3...
#> 5  Northampton  1421  1606     9     3 MULTIPOLYGON (((-77.21767 3...
#> 6     Hertford  1452  1838     7     5 MULTIPOLYGON (((-76.74506 3...
#> 7       Camden   286   350     0     2 MULTIPOLYGON (((-76.00897 3...
#> 8        Gates   420   594     0     2 MULTIPOLYGON (((-76.56251 3...
#> 9       Warren   968  1190     4     2 MULTIPOLYGON (((-78.30876 3...
#> 10      Stokes  1612  2038     1     5 MULTIPOLYGON (((-80.02567 3...
```

Data is for the 100 counties of North Carolina, and includes counts of
numbers of live births (also non-white live births) and numbers of sudden infant
deaths, for the **July 1, 1974 to June 30, 1978** and
**July 1, 1979 to June 30, 1984** periods.

---

## Plotting with `ggplot()`

```r
ggplot(nc) +
  geom_sf()
```

**What is different here in terms of how we used `ggplot()`?**

---

## Add a theme

```r
ggplot(nc) +
  geom_sf() +
  theme_bw(base_size = 16)
```

---

## A look at some aesthetics

```r
ggplot(nc) +
  geom_sf(color = "purple") +
  theme_bw(base_size = 16)
```

---

## A look at some aesthetics

```r
ggplot(nc) +
  geom_sf(color = "purple", size = 3) +
  theme_bw(base_size = 16)
```

---

## A look at some aesthetics

```r
ggplot(nc) +
  geom_sf(color = "purple", size = 3, alpha = .4) +
  theme_bw(base_size = 16)
```

---

## A look at some aesthetics

```r
ggplot(nc) +
  geom_sf(color = "purple", size = 3, alpha = .4, fill = "lightblue") +
  theme_bw(base_size = 16)
```

---

## A look back at some of our data

How can we incorporate these variables in our plot using `ggplot()`?

---

## Choropleth map

```r
ggplot(nc) +
* geom_sf(aes(fill = BIR74)) +
  theme_bw(base_size = 16)
```

It is sometimes helpful to pick diverging colors,
[COLOR BREWER 2](http://colorbrewer2.org/#type=sequential&scheme=BuGn&n=3)
can help.

---

## Choropleth map

One way to set fill colors is with `scale_fill_gradient()`.

```r
ggplot(nc) +
  geom_sf(aes(fill = BIR74)) +
* scale_fill_gradient(low = "#fee8c8", high = "#7f0000") +
  theme_bw(base_size = 16)
```

---

## ...it's just a population map!

---

## ...it's just a population map!

---

## Multiple plots - code

```r
library(patchwork)

p1 <- ggplot(nc) +
 geom_sf(aes(fill = SID74)) +
 scale_fill_gradient(low = "#fff7f3", high = "#49006a") +
 theme_bw(base_size = 16) +
 labs(title = "Sudden Infant Death",
 caption = "July 1, 1974 to June 30, 1978", fill = "Count")

p2 <- ggplot(nc) +
 geom_sf(aes(fill = SID79)) +
 scale_fill_gradient(low = "#fff7f3", high = "#49006a") +
 theme_bw(base_size = 16) +
 labs(caption = "July 1, 1979 to June 30, 1984", fill = "Count")

*p1 / p2
```

---

## Application exercise

Work on Tasks 1 and 2.

???

## Task 2

#### Part 1

Use object `world` to create a world map of the countries. You'll want to use
functions `ggplot()` and `geom_sf()`.

```r
ggplot(data = world) +
  geom_sf()
```

#### Part 2

Build on your map from Part 1 so that the countries have a fill color
associated with the population estimate. Variable `pop_est` is in millions.
Be sure to label your map.

```r
ggplot(data = world, aes(fill = pop_est)) +
  geom_sf() +
  labs(fill = "Population\n(in millions)", title = "Population by country") +
  theme_minimal()
```

---

# Map layers

---

## Game Lands data

The North Carolina Department of Environment and Natural Resources,
Wildlife Resources Commission and the NC Center for Geographic Information and
Analysis has a shapefile data set available on all public Game Lands in NC.

https://hub.arcgis.com/datasets/faaad7fcca8d4f67abdbb1bd4697f055_0

```r
nc_game <- st_read("data/gamelands.shp", quiet = TRUE)
```

---

## A closer look

```r
nc_game
```

```
#> Simple feature collection with 94 features and 6 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -84.29534 ymin: 33.98542 xmax: -75.54947 ymax: 36.58814
#> epsg (SRID):    4267
#> proj4string:    +proj=longlat +datum=NAD27 +no_defs
#> First 10 features:
#>    OBJECTID                   GML_HAB  SUM_ACRES GameLandID Shape__Are
#> 1         1                     Alcoa 11395.9471          1   69931121
#> 2         2           Alligator River 24439.0891          2  151120825
#> 3         3                Angola Bay 34063.4468          3  204400526
#> 4         4              Bachelor Bay  2786.2577          4   17219484
#> 5         5             Bertie County  3883.7683          5   24044312
#> 6         6 Bladen Lakes State Forest 33671.8426          6  202085696
#> 7         7             Brinkleyville  1843.8439         92   11511489
#> 8         8                  Buckhorn   491.3477         81    3046371
#> 9         9                 Buckridge 17965.7187         10  110580903
#> 10       10              Buffalo Cove  6630.9453         11   41161465
#>    Shape__Len                       geometry
#> 1   549030.42 MULTIPOLYGON (((-80.07347 3...
#> 2   186792.83 MULTIPOLYGON (((-76.11832 3...
#> 3   105421.80 MULTIPOLYGON (((-77.86947 3...
#> 4    32891.84 MULTIPOLYGON (((-76.73896 3...
#> 5    83468.94 MULTIPOLYGON (((-76.9209 35...
#> 6   255198.44 MULTIPOLYGON (((-78.46171 3...
#> 7    46838.19 MULTIPOLYGON (((-77.90555 3...
#> 8    13445.00 MULTIPOLYGON (((-79.22056 3...
#> 9   142923.83 MULTIPOLYGON (((-76.10961 3...
#> 10   98754.34 MULTIPOLYGON (((-81.53307 3...
```
]

---

## Visualize `nc_game`

```r
ggplot(nc_game) +
  geom_sf() +
  theme_bw() +
  labs(title = "NC gamelands")
```

---

## Visualize `nc_game`

```r
ggplot(nc_game) +
  geom_sf(fill = "#ff6700") +
  theme_bw() +
  labs(title = "NC gamelands")
```

---

## Add layers

```r
ggplot(nc) +
  geom_sf() +
  geom_sf(data = nc_game, fill = "#ff6700", alpha = .5) +
  theme_bw() +
  labs(title = "NC gamelands and counties")
```

---

## Add layers and aesthetics

```r
ggplot(nc) +
  geom_sf() +
  geom_sf(data = nc_game, aes(alpha = SUM_ACRES), fill = "#ff6700") +
  theme_bw() +
  labs(title = "NC gamelands and counties", alpha = "Acres")
```

---

# Spatial challenges

---

## Key spatial data challenges

1. Different data types exist.

- Raster versus vector

2. Special attention must be given to the coordinate reference system (CRS).

 ```r
 Simple feature collection with 100 features and 1 field
 geometry type: MULTIPOLYGON
 dimension: XY
 bbox: xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
 *epsg (SRID): 4326
 *proj4string: +proj=longlat +datum=WGS84 +no_defs
 # A tibble: 100 x 2
 NAME geometry
 <chr> <MULTIPOLYGON [°]>
 1 Ashe (((-81.47276 36.23436, -81.54084 36.27251, -...
 2 Alleghany (((-81.23989 36.36536, -81.24069 36.37942, -...
 ```

3. Manipulating spatial data objects is similar but not identical to
   manipulating data frame objects.

- Core `dplyr` functions do work

---

## Spatial data plotting needs care

---

## Some core `dplyr` functions and `sf` objects

```r
nc %>%
  select(BIR74, SID74)
```

```
#> Simple feature collection with 100 features and 2 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
#> epsg (SRID):    4267
#> proj4string:    +proj=longlat +datum=NAD27 +no_defs
#> First 10 features:
#>    BIR74 SID74                       geometry
#> 1   1091     1 MULTIPOLYGON (((-81.47276 3...
#> 2    487     0 MULTIPOLYGON (((-81.23989 3...
#> 3   3188     5 MULTIPOLYGON (((-80.45634 3...
#> 4    508     1 MULTIPOLYGON (((-76.00897 3...
#> 5   1421     9 MULTIPOLYGON (((-77.21767 3...
#> 6   1452     7 MULTIPOLYGON (((-76.74506 3...
#> 7    286     0 MULTIPOLYGON (((-76.00897 3...
#> 8    420     0 MULTIPOLYGON (((-76.56251 3...
#> 9    968     4 MULTIPOLYGON (((-78.30876 3...
#> 10  1612     1 MULTIPOLYGON (((-80.02567 3...
```

---

```r
nc %>%
  filter(AREA > .23)
```

```
#> Simple feature collection with 3 features and 14 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -79.45597 ymin: 33.94867 xmax: -78.11374 ymax: 35.31512
#> epsg (SRID):    4267
#> proj4string:    +proj=longlat +datum=NAD27 +no_defs
#>    AREA PERIMETER CNTY_ CNTY_ID     NAME  FIPS FIPSNO CRESS_ID BIR74 SID74
#> 1 0.241     2.214  2083    2083  Sampson 37163  37163       82  3025     4
#> 2 0.240     2.004  2150    2150  Robeson 37155  37155       78  7889    31
#> 3 0.240     2.365  2232    2232 Columbus 37047  37047       24  3350    15
#>   NWBIR74 BIR79 SID79 NWBIR79                       geometry
#> 1    1396  3447     4    1524 MULTIPOLYGON (((-78.11377 3...
#> 2    5904  9087    26    6899 MULTIPOLYGON (((-78.86451 3...
#> 3    1431  4144    17    1832 MULTIPOLYGON (((-78.65572 3...
```

---

```r
nc %>%
  summarise(med_area  = median(AREA),
            med_sid74 = median(SID74),
            med_sid79 = median(SID79))
```

```
#> Simple feature collection with 1 feature and 3 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
#> epsg (SRID):    4267
#> proj4string:    +proj=longlat +datum=NAD27 +no_defs
#>   med_area med_sid74 med_sid79                       geometry
#> 1   0.1205         4         5 MULTIPOLYGON (((-76.54427 3...
```

**What do you notice in the last three examples?**

---

## Geometries are sticky with `dplyr`

To remove the geometry include `st_drop_geometry()`.

```r
nc %>%
  select(AREA, NAME) %>%
  filter(AREA > .23) %>%
* st_drop_geometry()
```

```
#>    AREA     NAME
#> 1 0.241  Sampson
#> 2 0.240  Robeson
#> 3 0.240 Columbus
```

```r
nc %>%
* st_drop_geometry() %>%
  select(AREA, NAME) %>%
  filter(AREA > .23)
```

```
#>    AREA     NAME
#> 1 0.241  Sampson
#> 2 0.240  Robeson
#> 3 0.240 Columbus
```

---

## Application exercise

Work on Tasks 3 and 4. Try to recreate the plot below.

???

## Task 3

```r
china <- world %>%
 filter(name == "China")
```

```r
china_cv <- virus %>%
 filter(cntry_r == "Mainland China", !is.na(confrmd))
```

## Task 4

```r
ggplot(data = china) +
  geom_sf(fill = "#DE2910") +
  geom_sf(data = china_cv, aes(size = confrmd), color = "#FFDE00",
          show.legend = "point") +
  scale_size_continuous(range = c(0, 10)) +
  labs(size     = "Count",
       title    = "Coronavirus cases in China",
       subtitle = "As of Jan 25, 2020") +
  theme_bw()
```

---

## Looking ahead

- Thursday, Dr. Eric Monson will guest lecture. Eric is a data visualization
  specialist with the Duke University Libraries’ Center for Data and
  Visualization Sciences.

- Lab 03 will be the first team lab. A component of that lab will be based on
  Eric's talk. You should sit with your lab team for Thursday's lecture.

---

## References

- Simple Features for R vignette, https://r-spatial.github.io/sf/

- `mapview` vignette, https://r-spatial.github.io/mapview/index.html

- Coordinate Reference Systems in R
  https://www.nceas.ucsb.edu/~frazier/RSpatialGuides/OverviewCoordinateReferenceSystems.pdf
  by Melanie Frazier
